Beldeur® DualCam

The DualCam has several built-in options.

Option 1 - Transformer (12-24V AC)
Connect the doorbell to your existing doorbell transformer for constant power. No need to charge or disassemble.

Option 2 - Doorbell adapter (18V AC)
Use the Beldeur 18V AC adapter with a 5-meter cable for easy connection to a wall socket. No need to charge or disassemble.

Option 3 - Wireless with battery
Enjoy wireless convenience with the built-in battery that lasts an average of two months. Charge it with the included USB-C cable.

You can always switch between wireless and wired.

Never miss a visitor again. Watch live video feeds via Wi-Fi or mobile network and stay informed about visitors and movements, wherever you are.

Experience sharp and detailed images in 1080p resolution, regardless of the time of day. With advanced night vision, you'll have a clear view of your front door, even in the dark.

Seamless connection to your network, compatible with both 5GHz and 2.4GHz Wi-Fi networks. This ensures a stable connection and improved performance, even during heavy traffic.

Communicate effortlessly with visitors thanks to the built-in speaker and microphone. Perfect for accepting packages or greeting guests.

With a 144° wide-angle lens, you won't miss a single detail. Easily zoom in via the app to see objects up close.

Never miss anything important with smart motion detection. Customize notifications to your preferences and set specific detection zones, so you only receive alerts for relevant movements. Ideal for busy streets or shared spaces.

The doorbell automatically records when motion is detected or the doorbell is rung. All videos (with audio) are stored locally on the free SD card . When the card is full, the oldest recordings are automatically deleted to replace new ones. You can always download and save footage to your phone.

You can choose from:

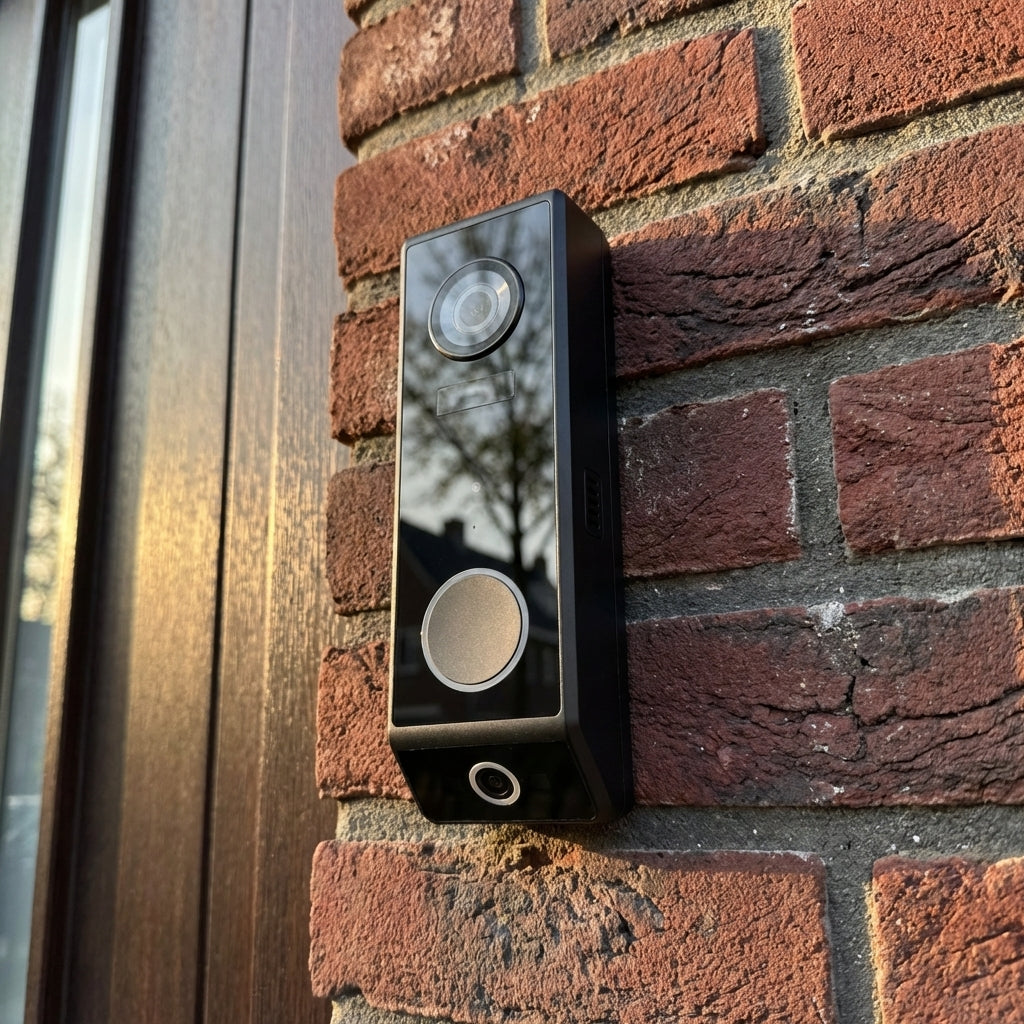

• Mounting with screws & plugs

• Mounting with strong 3M adhesive strip (no drilling required, ideal for tenants)

Both come standard.

Designed for all weather conditions (IP65) and tamper-proof, the sturdy mounting plate and security screw prevent the doorbell from being easily removed.

If any attempt is made to pull it off, the built-in sensor will immediately detect this and the doorbell will activate a loud anti-theft alarm.

Share access with the whole family. Up to eight users can be connected to a single doorbell, so everyone (if desired) receives instant notifications when a visitor arrives. Easily connect your smartphone, tablet, or even your smartwatch for instant notifications and complete control. Easy to manage via the user-friendly app.

The video doorbell is compatible with Google Home and Amazon Alexa, allowing you to easily receive notifications and view live footage on your smart devices. Operate your doorbell hands-free with voice commands and stay informed about visitors, wherever you are. This makes your home more secure and your daily routine even easier.

4.9 x 3.2 x 14.2 cm

The DualCam has several built-in options.

Option 1 - Transformer (12-24V AC)
Connect the doorbell to your existing doorbell transformer for constant power. No need to charge or disassemble.

Option 2 - Doorbell adapter (18V AC)
Use the Beldeur 18V AC adapter with a 5-meter cable for easy connection to a wall socket. No need to charge or disassemble.

Option 3 - Wireless with battery
Enjoy wireless convenience with the built-in battery that lasts an average of two months. Charge it with the included USB-C cable.

You can always switch between the options.

You can, but you don't have to.

You can choose from:

• Mounting with screws (fixed and permanent)

• Mounting with strong 3M adhesive strip (no drilling, ideal for plastic)

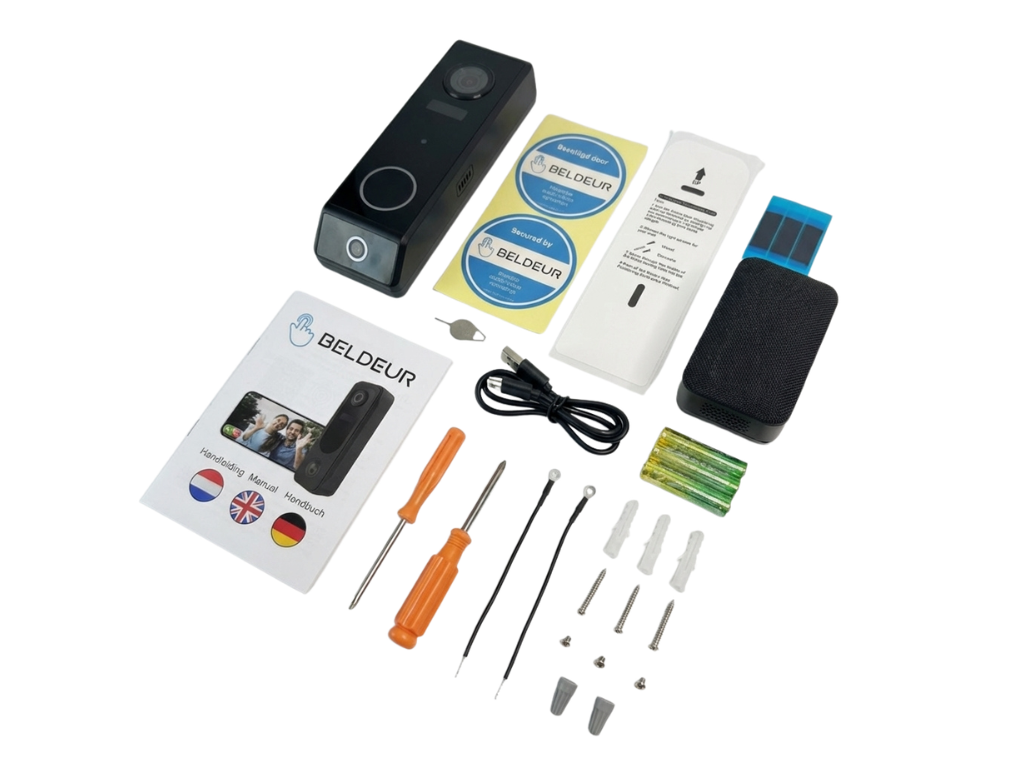

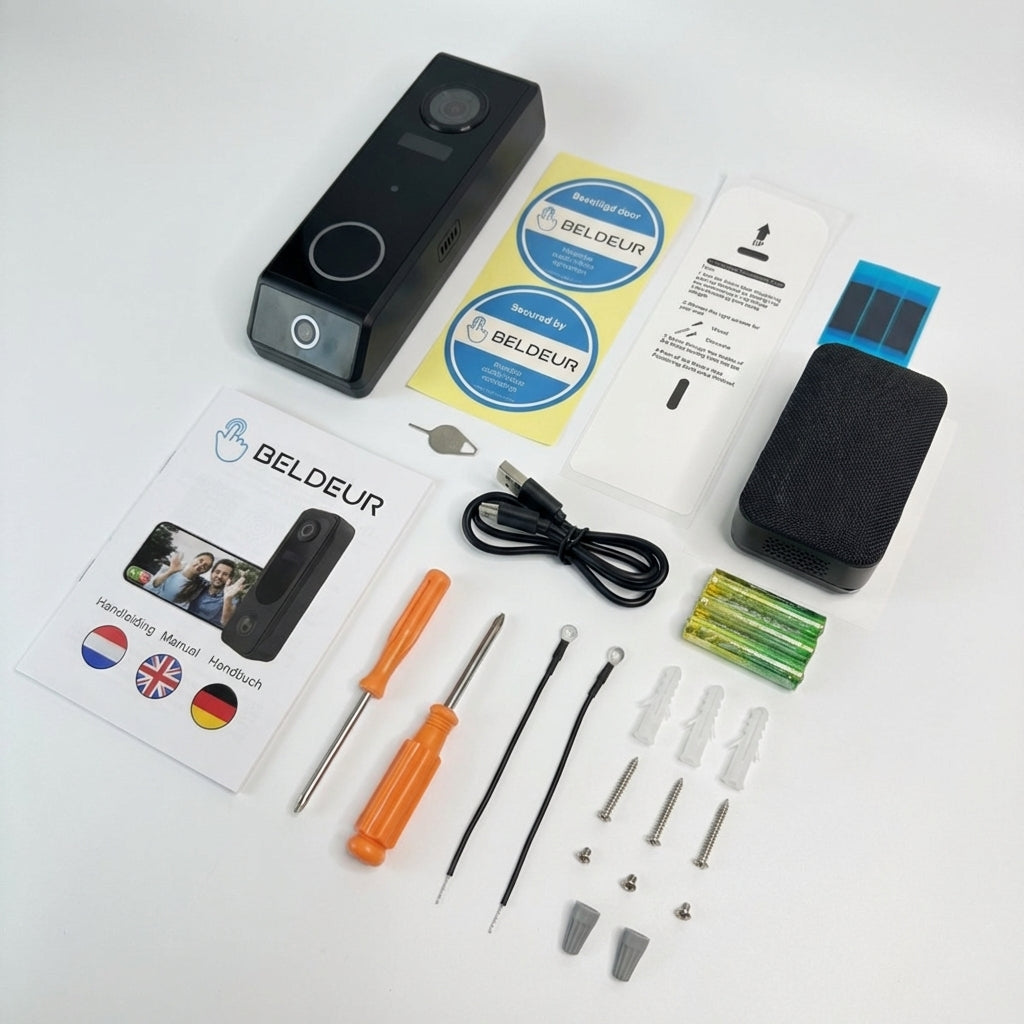

Both are included as standard.

Yes. You can connect up to 8 users to one doorbell.

Everyone receives immediate notifications and can watch live via their own smartphone or smartwatch.

All images are stored locally on the supplied SD card (no cloud, no third parties).

With 64GB, you can store up to 120 days of video footage . Once the card is full, the oldest recordings are automatically overwritten.

The connection is secured with AES128 encryption .

No, never.

All features, such as live view, notifications, recordings, and playback, work completely without monthly costs.

On average, up to 2 months with normal use (approximately 20 notifications per day). The battery can last up to 5 months in standby mode. Charging takes approximately 12 hours and is done via USB.

5.2 x 3.3 x 16.4 cm

The doorbell is further protected against theft with a special security screw located at the top of the doorbell. This screw prevents the doorbell from being easily removed. To remove the doorbell, a special tool is included that allows you to safely and easily unscrew the screw. This ensures maximum protection and ease of use.

Very important to know! The doorbell works perfectly within 20 meters of your Wi-Fi access point. The doorbell chime must be located within 30 meters of the doorbell, as it is uniquely paired with your doorbell and doesn't require Wi-Fi.

Yes, you can easily connect your Beldeur video doorbell to Google Home and Amazon Alexa through the app. This allows you to view live video on a compatible device, such as a Google Nest Hub or an Amazon Echo Show, and use voice commands to check the doorbell status. Consult the manual or our customer service for step-by-step instructions on how to connect.

The process is very simple. Start by downloading the app, turning on your video doorbell, and then follow the instructions within the app on your phone. Voilà, the installation is complete!

Now that your doorbell is functioning properly, you can mount it in your desired location using the included installation kit.

At Beldeur, we're committed to delivering not only high-quality video doorbells but also a hassle-free and budget-friendly user experience. Unlike our competitors, who often charge subscription fees, we offer our customers the convenience of our video doorbells and the accompanying app completely free of charge, with no hidden subscription fees. This is part of our commitment to providing exceptional value and service.

You only pay the one-time purchase price of the doorbell and all described functions are completely free of charge.

Camera

Image Sensor

1/2.8'' 3Megapixel CMOS & 1/2.9'' 2Megapixel CMOS

Effective Pixels

2304(H) x 1296(V) & 1920(H) x 1080(V)

Min. Illumination

Color 0.1Lux@F2.0

Black/White 0.01Lux@F2.0

IR Distance

Night visibility up to 10m

Day/Night

Auto(ICR)/Color/B&W

WDR

DWDR

Lens&FOV(H/V/D)

3.2mm@F2.0, 104°/56°/126° (up)

3.2mm@F2.0, 94°/54°/120° (down)

Network

Alarm Trigger

Button triggering, PIR detection

Wireless Security

64/128-bit WPA/WPA2, WPA-PSK/WPA2-PSK, WPS

Communication Protocol

HTTP, DHCP, DNS, TCP/IP

Interface Protocol

Private

Wireless

2.4Ghz & 5Ghz WIFI (IEEE802.11b/g/n)

Supported Mobile Phone OS

iOS 9 or later, Android 5 or later

Security

AES128

Video&Audio

Compression

H.264 、H.265

Bit Rate

32Kbps~2Mbps

Frame Rate

1~25fps

Dual Stream

Yes

Audio Input/Output

Built-in mic/speaker

Battery&PIR

Capacity

5200mAh rechargeable Li batteries

Stand-by Current

200-800 µA (average)

Working Current

150-200 mA (IR off)

Stand-by Time

6 months

Working Time

2-3 months (10 times wake up per day)

PIR Detection Range

Max. 5m

PIR Angle

100°

General

Operating Temperature

-20 °C to 50 °C

IP Rating

IP65

Power Supply

DC 5V/1A

Power Consumption

Max. 2W

Wireeless Chime

Support 433MHz

Storage

SD card (Max.256GB), Cloud storage
